Fixture and fixture applications for 3D printing are rising in the automotive manufacturing industry, including:

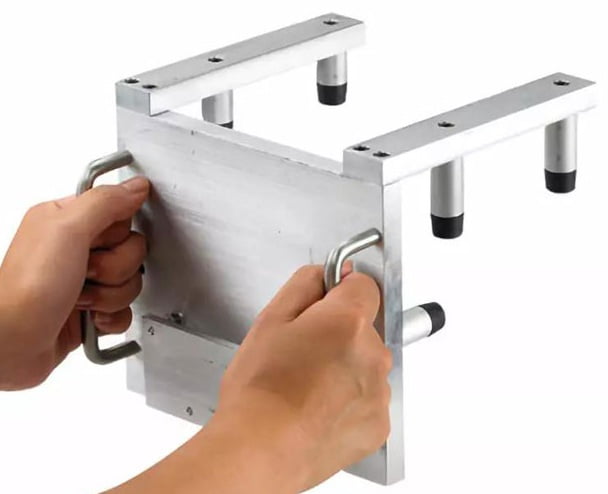

Signboard calibration, positioning device Production line workers usually use hand-held fixtures to manually affix vehicle identification and model name. Traditionally, this type of fixture will be a CNC machine tool made of metal, which is bulky and expensive and difficult to update or copy. Using thermoplastic for 3D printing these tools, car manufacturers can create more customized fixture curved car body panels. They are lighter and ergonomic, reducing fatigue and injury to assemblers.


Body panel gap gauge
The 3D printed body panel gap gauge used to detect the final assembly benefits from the complex shape and the contour matching the shape of the body panel, and forms a non-destructive surface for inspection.
Substitute parts


Automobile manufacturers began to use 3D printing parts to replace the end-use parts programmed for automatic robots in cars. This speeds up the pre production process and ensures that the assembly line can start once the final production parts are available.


Windshield wiper assembly equipment
In the past, the windshield wiper assembly equipment was made of aluminum, which would damage the painted body panel. The 3D printing plastic fixture will minimize contact with the vehicle and reduce the risk of damage to the panel.


Transportation support fixture
The most common use of 3D printing in packaging and logistics is custom support fixtures for factory transportation of parts. The supporting fixture used for packaging is usually made of 3D printing, which is firm and durable, and adopts heat-resistant thermoplastic materials, which can withstand the pressure of transportation. The tray printed in 3D with electrostatic dissipative material can safely transport sensitive electronic products.


For example, Eckhart uses additive manufacturing in factories, including ergonomic lifting AIDS and torque relief tools that can help workers position the car engine while fixing it to the chassis. In addition, Eckhart and STRATASYS are testing the embedding of micro sensors into 3D printing fixtures and fixtures for advanced diagnostic monitoring of the production line.

What is a 3D printing fixture and how is it used in automobile manufacturing?

A 3D printing fixture is a custom-designed tool that is created using 3D printing technology. It is used in automobile manufacturing to hold parts in place during the assembly process, ensuring that they are aligned correctly and securely. 3D printing fixtures are often used in conjunction with other manufacturing tools, such as jigs and fixtures, to ensure precision and accuracy in the production process.

What are the benefits of using 3D printing fixtures in automobile manufacturing?

The use of 3D printing fixtures in automobile manufacturing offers several benefits. These fixtures can be customized to fit specific parts or components, ensuring that they are held securely in place during the assembly process. They can also be created quickly and cost-effectively using 3D printing technology, reducing the time and expense associated with traditional manufacturing methods. Additionally, 3D printing fixtures are reusable and can be easily modified or adjusted as needed.

How does the use of 3D printing fixtures improve the efficiency of automobile manufacturing?

By using 3D printing fixtures, automobile manufacturers can improve the efficiency of their production processes in several ways. These fixtures can reduce the time required for manual labor and increase the accuracy and precision of the assembly process. They can also improve quality control by ensuring that parts are aligned correctly and securely. Additionally, 3D printing fixtures can be created on-demand, reducing the need for large inventories of pre-made fixtures.

What are some examples of how 3D printing fixtures have been used in the automobile manufacturing industry?

3D printing fixtures have been used in various ways in the automobile manufacturing industry. For example, they have been used to hold parts in place during the assembly of car doors, steering columns, and engines. Additionally, 3D printing fixtures have been used to create molds for the production of plastic and rubber components, as well as to create tools for welding and cutting metal parts. Overall, the use of 3D printing fixtures has helped to improve the efficiency and accuracy of the automobile manufacturing process.
