Hot die casting is a highly efficient and widely used manufacturing process that allows for the production of intricate and complex metal parts with excellent dimensional accuracy. It has revolutionized the manufacturing industry, enabling the creation of a wide range of products that are vital for various sectors. In this extensive blog post, we will delve into the intricacies of hot die casting, exploring its method, applications, advantages, and the factors that contribute to its authority and trustworthiness as a preferred manufacturing technique.
What is Hot Die Casting?
Hot die casting, also known as high-pressure die casting, is a metal casting process that involves injecting molten metal into a mold cavity under high pressure. The mold, known as a die, is designed to shape the metal into the desired form. The process is particularly suitable for producing complex and precise parts with a high degree of repeatability and efficiency.
The Hot Die Casting Process
1. Mold Preparation
The hot die casting process starts with the preparation of the mold. The mold is typically made of steel and consists of two halves: the cover die and the ejector die. Before the casting process begins, the mold must be carefully lubricated to ensure easy ejection of the finished part.
2. Melting the Metal
The raw material, usually in the form of metal ingots or pellets, is melted in a furnace at a controlled temperature. The temperature is crucial as it affects the flowability and fillability of the molten metal during the casting process.
3. Injecting the Molten Metal
Once the metal reaches the desired temperature, a ladle is used to transfer it to the shot chamber of the die casting machine. The shot chamber is a hydraulically operated cylinder that houses a piston. When the molten metal is in position, the piston applies high pressure, forcing the metal into the die cavity through a precisely controlled shot sleeve.
4. Solidification and Ejection
Once the molten metal fills the mold cavity, it is allowed to cool and solidify. The cooling time varies depending on the metal being cast and the complexity of the part. After solidification, the mold opens, and the finished part is ejected using ejector pins or a knockout system.
5. Trimming and Finishing
After ejection, the part may have excess material called flash, which is removed through trimming. The parts may then undergo further finishing processes, such as machining, polishing, or coating, to achieve the desired surface finish and dimensional accuracy.
Advantages of Hot Die Casting
Hot die casting offers numerous advantages that contribute to its widespread use in the manufacturing industry:
1. Complex Geometries
Hot die casting can produce parts with intricate and complex geometries that may be difficult or costly to achieve using other methods. The process allows for the creation of thin-walled sections, sharp corners, and fine details, meeting the requirements of modern product designs.
2. High Production Efficiency
The high-pressure injection of molten metal into the mold cavity enables rapid filling and solidification, resulting in shorter cycle times and higher production rates. This makes hot die casting ideal for mass production of parts.
3. Superior Surface Finish
Hot die casting produces parts with excellent surface finishes, reducing the need for additional post-processing and enhancing the aesthetics of the final product.
4. Material Versatility
A wide range of metals and alloys can be used in hot die casting, including aluminum, zinc, magnesium, and copper-based alloys. Each material offers specific mechanical properties, making hot die casting adaptable to various application requirements.
The combination of high production efficiency, minimal material waste, and reduced post-processing requirements makes hot die casting a cost-effective manufacturing process.
Applications of Hot Die Casting
Hot die casting finds applications in diverse industries, owing to its ability to produce high-quality, complex parts. Some of the key sectors that benefit from hot die casting include:
1. Automotive Industry

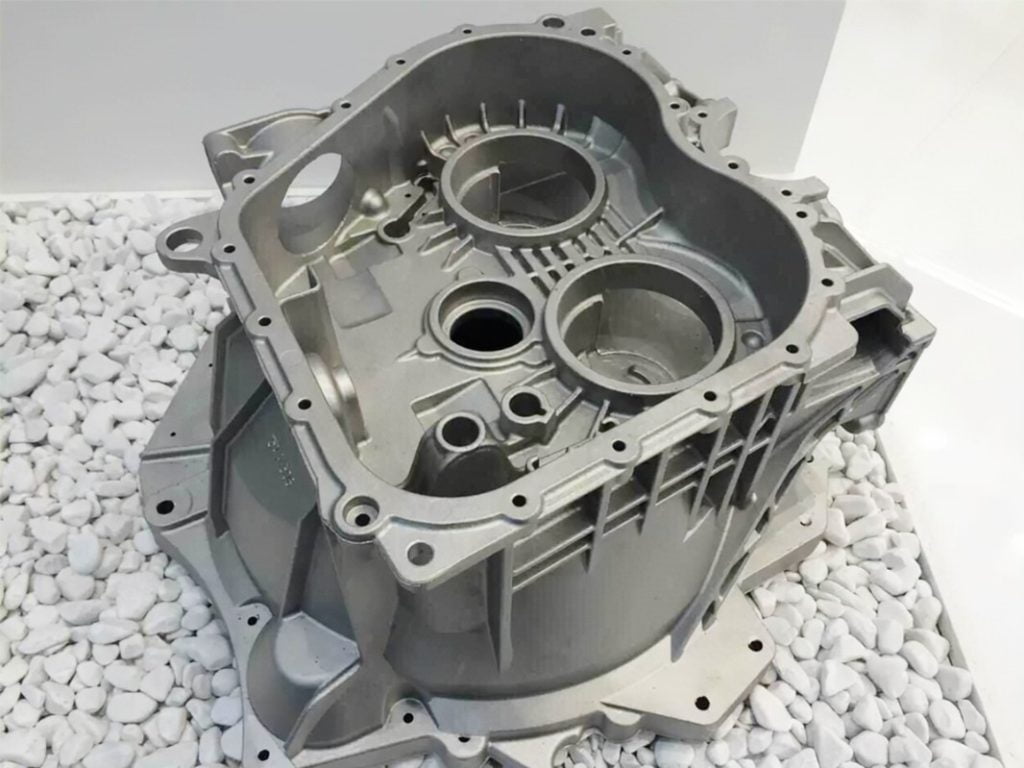

The automotive industry extensively utilizes hot die casting for manufacturing engine components, transmission parts, wheels, and structural elements. The process’s ability to produce lightweight and durable parts contributes to improved vehicle performance and fuel efficiency.
2. Aerospace and Defense
Hot die casting plays a critical role in the aerospace and defense sectors, where lightweight and high-strength components are essential. The process is used to produce parts for aircraft, satellites, missiles, and military equipment.
3. Consumer Electronics
In the consumer electronics industry, hot die casting is employed to manufacture smartphone frames, laptop housings, and other components that require precision and a sleek design.
4. Home Appliances
Hot die casting is utilized to produce parts for home appliances such as refrigerators, washing machines, and air conditioners. The process ensures the creation of reliable and efficient components for these everyday essentials.
5. Medical Devices
Hot die casting is used to manufacture medical devices and equipment, including orthopedic implants, surgical instruments, and diagnostic devices. The process’s ability to produce complex and biocompatible parts is crucial in the medical field.
The Authority and Trustworthiness of Hot Die Casting
Hot die casting has gained authority and trust in the manufacturing industry due to several factors:
1. Proven Track Record
Hot die casting has been in use for several decades and has consistently demonstrated its reliability and efficiency in mass production. Its success in various applications has cemented its position as a reputable manufacturing process.
2. Industry Standards and Certifications
Hot die casting adheres to strict industry standards and certifications that ensure consistent product quality, safety, and performance. Manufacturers who employ hot die casting often hold ISO and other relevant certifications, further establishing their authority and trustworthiness.
3. Advancements in Technology
Continuous advancements in technology have led to improved hot die casting processes, materials, and equipment. These innovations have enhanced the process’s capabilities, allowing it to meet the increasingly demanding requirements of modern industries.
4. Sustainable Manufacturing Practices
Manufacturers are increasingly incorporating sustainable practices in hot die casting, such as using recycled materials, optimizing energy consumption, and implementing waste reduction strategies. These efforts enhance the process’s reputation as an environmentally responsible manufacturing method.
5. Quality Control and Inspection
Hot die casting involves rigorous quality control and inspection processes to ensure that the final parts meet the specified requirements. Manufacturers invest in advanced inspection equipment and skilled personnel to maintain the highest standards of quality.
Frequently Asked Questions
- What types of materials are commonly used in hot die casting?
- Hot die casting primarily involves the use of non-ferrous metals and alloys, such as aluminum, zinc, magnesium, and copper-based alloys. These materials offer a good combination of mechanical properties and are well-suited for the high-pressure casting process.
- What are the key differences between hot die casting and cold chamber die casting?
- The main difference between hot die casting and cold chamber die casting lies in the method of injecting the molten metal. In hot die casting, the metal is injected directly into the mold cavity from a shot chamber, while in cold chamber die casting, the molten metal is ladled into a separate cold chamber before being injected into the mold. Hot die casting is more suitable for materials with lower melting points, like zinc and aluminum, whereas cold chamber die casting is used for materials with higher melting points, like magnesium and copper.
- How does hot die casting compare to other casting methods like sand casting and investment casting?
- Hot die casting offers several advantages over other casting methods. It allows for the production of more complex and intricate parts compared to sand casting. Moreover, hot die casting typically has a faster production rate and provides better surface finishes compared to sand casting and investment casting. However, hot die casting may not be suitable for very small production runs or unique custom parts, where investment casting might be a more appropriate choice.
- What are some of the challenges faced in hot die casting?
- Despite its numerous advantages, hot die casting does come with some challenges. One of the main challenges is the potential for porosity in the final parts, which can occur due to trapped air or gas during the injection process. This can be mitigated through proper mold design and process optimization. Another challenge is the high initial tooling costs associated with creating the die, which may be a barrier for small-scale production or prototype development. Additionally, hot die casting may not be suitable for all materials and part geometries, necessitating the use of alternative casting methods for certain applications.
Hot die casting has proven to be a highly effective and versatile manufacturing process, providing a cost-efficient solution for the production of intricate and complex metal parts. Its ability to produce high-quality, dimensionally accurate parts with excellent surface finishes has made it a preferred choice across various industries. From automotive to aerospace, consumer electronics to medical devices, hot die casting continues to shape the modern manufacturing landscape, driving innovation and progress in the production of critical components and products. The trustworthiness and authority of hot die casting stem from its proven track record, adherence to industry standards, continuous technological advancements, and sustainable manufacturing practices. As technology continues to evolve, hot die casting will undoubtedly play a central role in the manufacturing industry, contributing to the development of cutting-edge products that shape our world.
