Injection Molding Components: Selection, Maintenance, and Care

Injection Molding Components: Selection, Maintenance, and Care

Table of Contents:

  1. Introduction to Injection Molding
  2. Basic Components of Injection Mold
  3. Advanced Components of Injection Mold
  4. Material Selection for Injection Mold Components
  5. Maintenance and Care of Injection Mold Components
  6. Conclusion

-

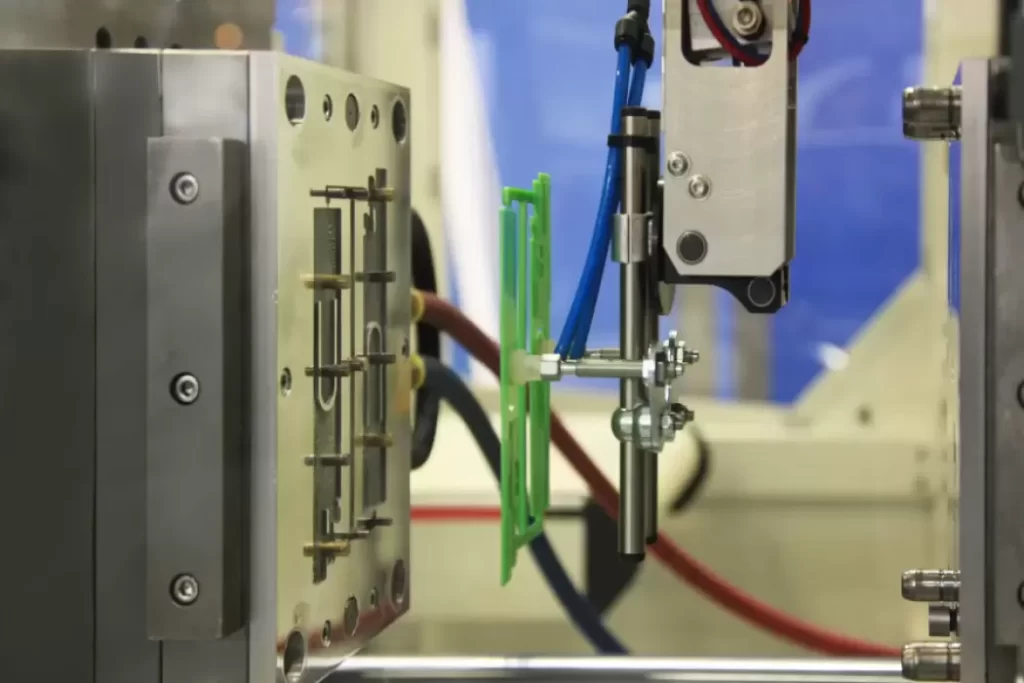

1.Introduction to Injection Molding

Injection molding is a manufacturing process used to produce parts by injecting molten material into a mold cavity under high pressure. This process is widely used in the production of plastic parts, but can also be used with other materials such as metals, glass, and ceramics.

The injection molding process involves several steps, including the design and manufacture of the mold, the preparation and injection of the material, and the cooling and ejection of the finished part from the mold.

The quality and efficiency of the injection molding process depends on the design and performance of the various components that make up the mold. In this guide, we will focus on the different types of components used in injection molds and their functions.

If you need about  Injection Molding Services,You can click on the V1 Prototype website to find it.

-

2.Basic Components of Injection Mold

A. Mold Base: The mold base is the foundation of the injection mold and provides a platform for all other components to be mounted on. It is typically made of steel and includes the support pillars, guide pins, and bushings that help align and secure the mold.

B. Mold Cavity: The mold cavity is the space in the mold where the molten material is injected to form the final part. It is usually made of hardened steel and is designed to be the exact shape and size of the finished part.

C. Sprue Bushing: The sprue bushing is the entry point for the molten material into the mold. It is located in the mold base and connects to the runner system.

D. Runner System: The runner system is a series of channels that direct the molten material from the sprue bushing to the mold cavity. It is typically made up of several components, including the sprue, runners, gates, and vents.

E. Ejector Pins: Ejector pins are used to push the finished part out of the mold cavity after it has cooled and solidified. They are typically located in the mold base and are activated by the ejection system.

F. Cooling System: The cooling system is a network of channels that circulate cooling fluid (usually water) through the mold to help the molten material solidify and cool more quickly. The cooling system can be either internal or external and is an important factor in the quality and efficiency of the injection molding process.

G. Mold Inserts: Mold inserts are removable sections of the mold that can be replaced or modified to allow for different part geometries or to accommodate inserts or overmolding.

H. Mold Alignment Devices: Mold alignment devices are used to ensure that the mold halves are correctly aligned and secured during the injection molding process. They may include guide pins, bushings, or locking mechanisms.

I. Hot Runner System: The hot runner system is an alternative to the runner system that uses heated channels to keep the molten material in a liquid state as it flows through the mold. This can reduce waste and improve efficiency in certain types of injection molding.

J. Gate: The gate is the narrowest part of the runner system and controls the flow of molten material into the mold cavity. There are several different types of gates, including sprue gates, edge gates, and tunnel gates, each with their own advantages and disadvantages.

-

3.Advanced Components of Injection Mold

A. Mold Interlocks: Mold interlocks are mechanical features that prevent the mold from opening prematurely during the injection molding process. They are typically located in the mold base and can be designed to engage automatically or be manually activated.

B. Hydraulic Core Pullers: Hydraulic core pullers are used to move cores or other components within the mold. They are controlled by hydraulic cylinders and are essential for producing parts with complex geometries or multiple undercuts.

C. Unscrewing Mechanism: An unscrewing mechanism is used to remove threaded components from the mold cavity after they have been formed. It typically includes a rotating core that unscrews the component as it is ejected from the mold.

D. Slide Core Mechanism: A slide core mechanism is used to create complex geometries or undercuts in the finished part. It typically involves a sliding or rotating core that moves in and out of the mold cavity during the injection molding process.

E. Lifters: Lifters are mechanical components that are used to create features in the finished part that cannot be formed with a straight pull from the mold. They are typically used to create recessed areas or other complex features and are controlled by hydraulic or mechanical systems.

-

4.Material Selection for Injection Mold Components

A. Steel Types and Properties: The selection of steel for injection mold components depends on a number of factors, including the type of material being molded, the size and complexity of the part, and the desired lifespan of the mold. Some common types of steel used in injection molding include:

  • P20: A low-alloy tool steel that is easy to machine and has good toughness and wear resistance. It is commonly used for core and cavity inserts.
  • H13: A hot work tool steel that is highly resistant to heat and wear. It is commonly used for hot runner systems, as well as core and cavity inserts.
  • S7: A shock-resistant tool steel that is commonly used for mold bases and other high-impact components.
  • Stainless steel: Stainless steel is often used in injection molding applications where corrosion resistance is important.

B. Coatings and Treatments: Coatings and treatments can be applied to steel injection mold components to improve their performance and lifespan. Some common coatings and treatments include:

  • Nitriding: A surface treatment that diffuses nitrogen into the surface of the steel, improving its hardness and wear resistance.
  • PVD (Physical Vapor Deposition) coatings: Thin, durable coatings that can improve wear resistance and reduce friction.
  • DLC (Diamond-Like Carbon) coatings: Highly wear-resistant coatings that can improve the lifespan of injection mold components.
  • Chrome plating: A coating that can improve corrosion resistance and reduce friction.

The selection of coatings and treatments depends on the specific application and requirements of the injection mold components.

-

5.Maintenance and Care of Injection Mold Components

A. Cleaning and Lubrication: Proper cleaning and lubrication of injection mold components is essential for maintaining their performance and lifespan. Mold components should be cleaned after each use to remove any residual material or debris. Lubrication should be applied according to the manufacturer’s recommendations to prevent wear and reduce friction.

B. Storage and Handling: Proper storage and handling of injection mold components is also important for their longevity. Mold components should be stored in a clean, dry environment to prevent corrosion or damage. They should be handled carefully to avoid dents, scratches, or other types of damage that could impact their performance.

C. Repair and Replacement: Injection mold components can become damaged over time, particularly if they are not properly maintained or used inappropriately. Minor damage can often be repaired by a qualified technician, while more extensive damage may require replacement. Regular inspections of injection mold components can help identify any issues before they become more serious and impact the quality of the finished product.

-

6.Conclusion

Injection molding is a complex process that requires a variety of components to work together seamlessly to produce high-quality parts. Proper selection, maintenance, and care of injection mold components is essential for achieving consistent and reliable results. From the basic components like mold base and cavity to the more advanced components like hydraulic core pullers and slide core mechanisms, each part plays a critical role in the injection molding process. Material selection, coatings and treatments, cleaning and lubrication, storage and handling, and repair and replacement are all important factors to consider when it comes to maintaining and caring for injection mold components. By following these guidelines and ensuring that each component is functioning properly, manufacturers can produce high-quality parts efficiently and effectively.
