Injection molding is a widely used manufacturing process in which molten plastic is injected into a mold cavity under high pressure to produce complex and precise components. Injection molding molds play a critical role in this process as they determine the final shape, size, and quality of the plastic part. In this article, we will provide an overview of injection molding molds, their basic components, types, design considerations, and applications.
Definition of Injection Molding Molds:
An injection molding mold is a tool consisting of one or more cavities that are used to produce plastic parts by injecting molten plastic into the mold under high pressure. The mold is designed to shape the plastic part according to the desired geometry, surface finish, and dimensional accuracy.
Importance of Injection Molding Molds:
Injection molding molds are critical to the success of the injection molding process. They not only determine the final shape and quality of the plastic part but also affect the production cycle time, cost, and efficiency. A well-designed and properly maintained mold can improve the part quality, reduce the scrap rate, and increase the production output. On the other hand, a poorly designed or worn-out mold can cause defects, delays, and downtime, leading to increased costs and reduced profitability. Therefore, it is essential to understand the basic components, types, and design considerations of injection molding molds to ensure the success of the injection molding process.

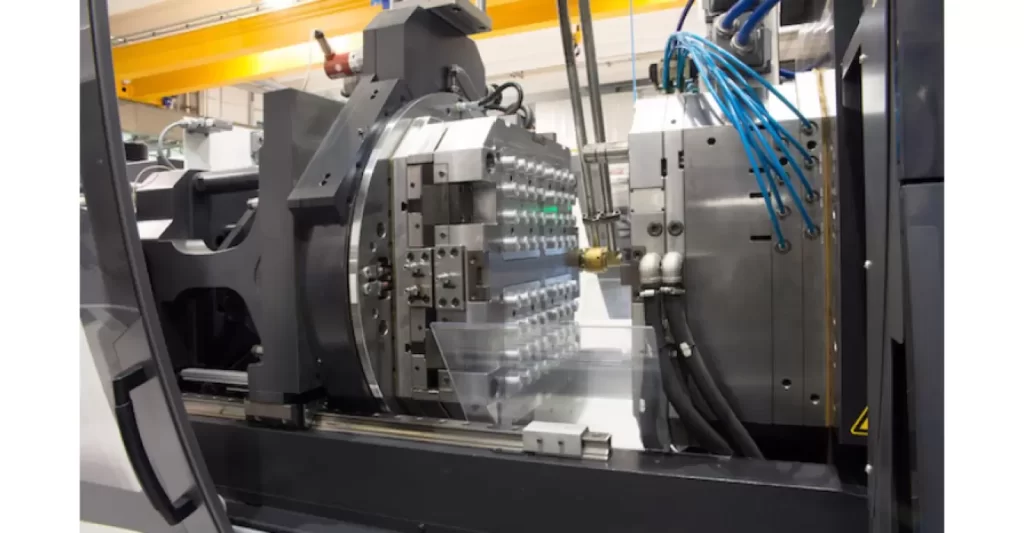

2.Basic Components of Injection Molding Molds
An injection molding mold consists of several components that work together to form the plastic part. The following are the five basic components of injection molding molds:
- Mold Base:
The mold base is the foundation of the mold and provides the support and stability needed during the injection molding process. It is typically made of steel and serves as the main reference point for all other components in the mold.
- Mold Cavities:
The mold cavities are the hollow spaces within the mold that shape the molten plastic into the desired form. They are usually made of hardened steel and are designed to withstand the high pressure and temperature of the injection molding process.
- Runner System:
The runner system is a network of channels that guide the molten plastic from the injection molding machine into the mold cavities. It includes the sprue, which connects the injection molding machine to the runner system, and the gates, which control the flow of plastic into each cavity.
- Cooling System:
The cooling system is a series of channels or passages that circulate a cooling medium, such as water, through the mold to remove heat from the molten plastic and solidify it into the desired shape. Proper cooling is critical to achieve the desired part quality and avoid warpage or shrinkage.
- Ejector System:
The ejector system is responsible for removing the solidified plastic part from the mold cavity after the injection molding cycle is complete. It typically consists of ejector pins or plates that push the part out of the cavity, as well as return pins or springs that retract the ejector system back into its original position. The ejector system design and operation can significantly affect the part quality and cycle time.
3.Types of Injection Molding Molds
There are several types of injection molding molds, each with its own unique design and application. The following are some of the most common types of injection molding molds:
- Two-Plate Molds:
Two-plate molds, also known as single-face molds, are the simplest and most common type of injection molding mold. They consist of two main plates that are held together by clamps or bolts. The mold cavities are formed by the cavity side of the mold plate and the core side of the mold plate.
- Three-Plate Molds:
Three-plate molds, also known as double-face molds, are similar to two-plate molds, but they have an additional plate called a runner plate. The runner plate separates the runner system from the part cavity and allows for greater flexibility in gating and ejecting the parts.
- Hot Runner Molds:
Hot runner molds use a heated manifold system to guide the molten plastic directly from the injection molding machine into the mold cavities. This eliminates the need for a separate runner system and reduces waste and cycle time.
- Cold Runner Molds:
Cold runner molds use a separate runner system that is not heated and must be removed from the molded part after the injection molding process. This results in more waste and longer cycle times but can be more cost-effective for small production runs.
- Family Molds:
Family molds, also known as multi-cavity molds, are designed to produce multiple parts in a single injection molding cycle. They are commonly used for small, high-volume parts such as caps, closures, and connectors.
- Stack Molds:
Stack molds are a type of family mold that allows for even more efficiency by stacking multiple mold layers on top of each other. This enables the mold to produce twice as many parts per cycle as a standard family mold, but it also requires more complex design and manufacturing processes.
Click on the V1 Prototype website to gain more information.
4.Design Considerations for Injection Molding Molds
The design of an injection molding mold is critical to the success of the injection molding process. The following are some of the key design considerations for injection molding molds:
- Material Selection:
The selection of materials for the mold base, mold cavities, and other components should be based on factors such as cost, strength, wear resistance, thermal conductivity, and corrosion resistance. Common materials used in injection molding molds include hardened steel, aluminum, beryllium copper, and P20 steel.
- Mold Layout:
The mold layout should be optimized for the injection molding machine’s size, shape, and injection unit. The mold design should also take into account the desired part orientation, runner and gate location, and ejection system.
- Gate Location and Size:
The gate location and size should be carefully selected to ensure proper filling of the mold cavities and minimize part defects such as weld lines, sink marks, and flow lines. The gate size should be designed to allow for sufficient flow rate and pressure while minimizing shear stress and gate vestige.
- Parting Line Location:
The parting line location should be selected to minimize the appearance of parting line flash and optimize the ejection system. The parting line should be located in areas of the part that are less visible and easy to conceal or remove.
Venting is critical to ensure proper air escape from the mold during injection and prevent trapped air from causing part defects such as burn marks and voids. Venting can be achieved through the use of venting grooves, ejector pins, or venting valves.
- Mold Surface Finish:
The mold surface finish is critical to achieving the desired part finish and minimizing part defects such as sink marks and scratches. The mold surface finish can be achieved through techniques such as polishing, texturing, and chemical etching. The surface finish should be selected based on the desired part appearance, release properties, and wear resistance.
5.Mold Making Process
The process of making an injection molding mold involves several stages, from mold design to mold assembly. The following are the main stages of the mold making process:
- Mold Design:
The mold design process involves creating a detailed plan of the mold’s dimensions, components, gating system, and ejection system. The design should be optimized for the desired part quality, cycle time, and production volume.
- Mold Fabrication:
The mold fabrication process involves the manufacturing of the mold components, including the mold base, cavities, cores, and gating system. The mold components can be fabricated using techniques such as CNC machining, wire EDM, and sinker EDM. The fabrication process should be carefully controlled to ensure the accuracy, consistency, and quality of the mold components.
- Mold Polishing:
The mold polishing process involves smoothing and finishing the mold surface to achieve the desired surface finish and minimize part defects such as sink marks and scratches. The polishing process can be achieved through techniques such as hand polishing, buffing, and chemical etching. The level of polishing should be selected based on the desired part finish and mold release properties.
- Mold Assembly:
The mold assembly process involves putting together the various mold components, including the mold base, cavities, cores, gating system, and ejection system. The assembly process should be carefully controlled to ensure the proper alignment, fit, and functionality of the mold components. Once the mold is assembled, it should be tested and inspected to ensure that it is ready for production.
6.Common Defects and Troubleshooting Techniques in Injection Molding Molds
Injection molding molds are subject to a variety of defects that can affect the quality and consistency of the molded parts. The following are some of the most common defects and their associated troubleshooting techniques:
Flash occurs when molten plastic escapes from the mold cavity and creates a thin layer of excess material on the part’s surface. This defect can be caused by excessive injection pressure, poor mold venting, or worn mold components. To troubleshoot flash, the injection pressure can be reduced, venting can be improved, and worn mold components can be replaced or repaired.
- Sink Marks:
Sink marks occur when the plastic cools and shrinks unevenly, creating a depression in the part’s surface. This defect can be caused by poor gate design, inadequate packing pressure, or insufficient cooling time. To troubleshoot sink marks, the gate design can be modified, the packing pressure can be increased, or the cooling time can be extended.
Warpage occurs when the part’s dimensions and shape deviate from the intended design. This defect can be caused by uneven cooling, poor mold design, or excessive packing pressure. To troubleshoot warpage, the mold design can be modified to improve cooling and reduce stress, or the packing pressure can be adjusted to reduce internal stresses.
- Short Shots:
Short shots occur when the mold cavity is not completely filled with plastic, resulting in an incomplete or undersized part. This defect can be caused by inadequate injection pressure, poor gate design, or inadequate venting. To troubleshoot short shots, the injection pressure can be increased, the gate design can be modified, or venting can be improved.
- Burn Marks:
Burn marks occur when the plastic overheats and burns during the injection molding process, creating black or brown discolorations on the part’s surface. This defect can be caused by excessive melt temperature, poor venting, or long cycle times. To troubleshoot burn marks, the melt temperature can be reduced, venting can be improved, or cycle times can be shortened.
- Mold Sticking:
Mold sticking occurs when the molded part adheres to the mold cavity and is difficult to eject. This defect can be caused by poor mold release properties, inadequate ejection force, or excessive cooling time. To troubleshoot mold sticking, the mold release properties can be improved, the ejection force can be increased, or the cooling time can be reduced.
7.Applications of Injection Molding Molds
Injection molding molds have a wide range of applications in various industries due to their versatility, high production capacity, and ability to produce complex shapes with high precision. The following are some of the major applications of injection molding molds:
- Automotive Industry:
Injection molding molds are used extensively in the automotive industry for the production of interior and exterior parts such as dashboards, door panels, and bumpers. The molds can produce high-quality parts with consistent dimensions and surface finish, making them ideal for mass production.
- Packaging Industry:
Injection molding molds are commonly used in the packaging industry for the production of containers, caps, and closures. The molds can produce parts with high strength and durability, as well as various shapes and sizes to meet different packaging needs.
- Medical Industry:
Injection molding molds are also used in the medical industry for the production of medical devices and components such as syringes, IV connectors, and surgical instruments. The molds can produce parts with high precision and cleanliness to meet the stringent requirements of the medical industry.
- Consumer Goods Industry:
Injection molding molds are used in the consumer goods industry for the production of various products such as toys, electronic enclosures, and kitchenware. The molds can produce parts with complex shapes and designs, as well as various colors and textures to meet different consumer preferences.
Injection molding molds play a crucial role in the manufacturing of a wide range of products across various industries. They allow for the production of high-quality, complex parts with high precision and consistency. In this article, we have discussed the basic components of injection molding molds, types of molds, design considerations, mold making process, common defects, and applications of injection molding molds.
Future Trends in Injection Molding Molds:
The injection molding industry is continually evolving, and new technologies are emerging to improve the efficiency, quality, and sustainability of the injection molding process. Some of the future trends in injection molding molds include the development of new materials, such as bioplastics and composites, the integration of sensors and monitoring systems to optimize production, and the use of automation and artificial intelligence to improve efficiency and reduce waste.
Importance of Proper Maintenance and Cleaning:
Proper maintenance and cleaning of injection molding molds are essential to ensure their longevity and optimal performance. Regular cleaning and maintenance can prevent defects and prolong the life of the mold. It is crucial to follow the manufacturer’s recommendations for cleaning and maintenance and to inspect the mold regularly for wear and damage. By properly maintaining and cleaning injection molding molds, manufacturers can ensure the production of high-quality, consistent parts, reducing downtime and increasing productivity.
In conclusion, injection molding molds are a critical component of the manufacturing process, and their proper design, maintenance, and cleaning are essential to ensure the production of high-quality, consistent parts. As the industry continues to evolve, it is essential to stay up-to-date with the latest trends and technologies to remain competitive and meet the changing needs of the market.
Injection molding is a widely used manufacturing process that can produce plastic parts with complex shapes and high dimensional accuracy. Injection molding molds are the tools that shape the molten plastic into the desired form. The design, types, and applications of injection molding molds are the focus of this article.
Injection molding molds consist of two main parts: the cavity and the core. The cavity is the hollow space that defines the shape of the part, while the core is the solid part that fills the cavity during molding. The cavity and the core are usually made of steel or aluminum alloys, and are mounted on a mold base that holds them together. The mold base also contains channels for cooling, ejecting, and injecting the plastic material.
There are many types of injection molding molds, depending on the complexity, size, and quantity of the parts to be produced. Some of the common types are:
- Single-cavity mold: A mold that produces one part per cycle.
- Multi-cavity mold: A mold that produces multiple identical parts per cycle.
- Family mold: A mold that produces multiple different parts per cycle.
- Two-plate mold: A mold that consists of two halves that separate along a parting line.
- Three-plate mold: A mold that consists of three plates that separate along two parting lines.
- Hot runner mold: A mold that uses heated channels to keep the plastic material molten in the runner system, reducing waste and improving quality.
- Cold runner mold: A mold that uses unheated channels to deliver the plastic material to the cavities, resulting in solidified runners that need to be trimmed and recycled.
Injection molding molds have various applications in different industries, such as automotive, medical, consumer electronics, packaging, and toys. Injection molding molds can produce parts with high precision, strength, durability, and aesthetic appeal. Injection molding molds can also accommodate different materials, colors, and finishes, offering flexibility and versatility in product design.
