Introduction
Metal 3D printing and traditional processes like casting and forging are two manufacturing methods used to produce metal parts. While both approaches have their merits, they also come with distinct differences in terms of materials, design flexibility, lead times, and cost. In this blog post, we will delve into the comparison between metal 3D printing and traditional casting and forging processes to understand their advantages, limitations, and applications in the modern manufacturing industry.
1. Overview of Metal 3D Printing
Metal 3D printing, also known as additive manufacturing, is a cutting-edge technology that enables the creation of intricate metal parts through layer-by-layer deposition of metal powders. This process utilizes a computer-aided design (CAD) model to guide a 3D printer that fuses the metal powders together using various techniques like selective laser melting (SLM) or electron beam melting (EBM). Metal 3D printing offers design freedom, allowing the production of complex geometries and the integration of internal structures not achievable with traditional methods.
2. Traditional Casting Process
Casting is one of the oldest and most widely used manufacturing processes for shaping metal parts. It involves pouring molten metal into a mold, which takes the desired shape of the part upon cooling. Casting offers excellent material properties and is suitable for mass production. However, the process is limited in terms of design complexity, and it may require additional machining to achieve precise tolerances.
3. Traditional Forging Process
Forging is a process where metal is shaped by applying compressive forces to deform it and alter its shape. It is often used to produce parts with high strength and durability. Forging can yield parts with superior mechanical properties compared to casting, but it is generally limited in terms of complex shapes and design flexibility.
4. Materials Selection
Metal 3D printing offers a wide range of materials, including various metals, alloys, and even composite materials. This versatility allows manufacturers to choose materials based on specific applications, performance requirements, and environmental conditions. On the other hand, traditional casting and forging processes are limited to certain materials that can be melted and shaped.
5. Design Flexibility and Complexity
One of the key advantages of metal 3D printing is its unmatched design flexibility. Complex geometries, internal channels, and lightweight lattice structures can be easily integrated into a single part, enabling the optimization of components for specific functions. Traditional casting and forging processes, while capable of producing strong parts, often struggle with intricate designs and may require additional manufacturing steps to achieve similar complexity.
6. Lead Times and Production Volume
Metal 3D printing excels in rapid prototyping and low-volume production. Its ability to produce one-off parts or small batches with minimal tooling makes it highly suitable for custom or niche applications. However, traditional casting and forging processes can be more efficient for mass production due to faster cycle times and economies of scale.
7. Cost Considerations
Cost is an essential factor in any manufacturing process. Metal 3D printing can be cost-effective for low-volume production, as it eliminates the need for expensive tooling. However, as the production volume increases, traditional casting and forging processes may become more cost-efficient.
8. Applications and Industries
Metal 3D printing is gaining popularity in industries such as aerospace, automotive, medical, and consumer electronics, where complex, lightweight, and customized parts are in demand. Traditional casting and forging processes continue to dominate applications that require high volumes of standard components, such as automotive engine parts and structural components.
Conclusion
Metal 3D printing and traditional processes like casting and forging each offer unique advantages and are best suited for different manufacturing scenarios. Metal 3D printing shines in design freedom, complexity, and rapid prototyping, while traditional processes excel in mass production and material properties. As technology continues to advance, both approaches will play integral roles in shaping the future of the manufacturing industry, catering to a wide range of applications and meeting the diverse needs of modern-day consumers.
With technological innovation, metal 3D printing technology is advancing and can already play an increasingly important role and has certain advantages over traditional processes such as casting and forging.
I. Advantages
- Build complex shapes that cannot be created by traditional processes

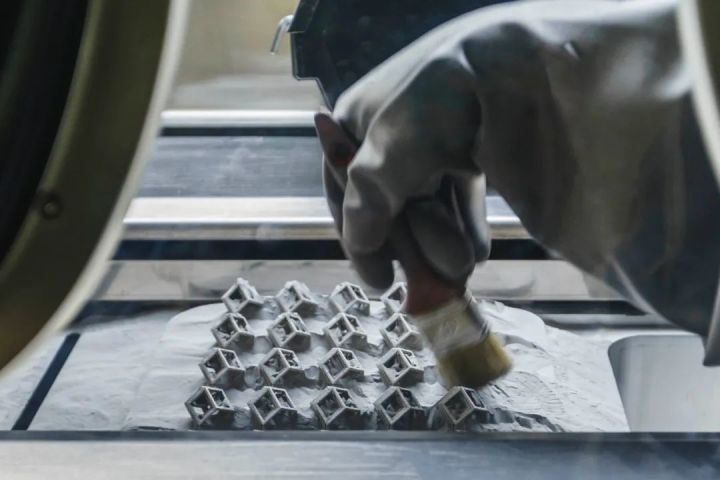

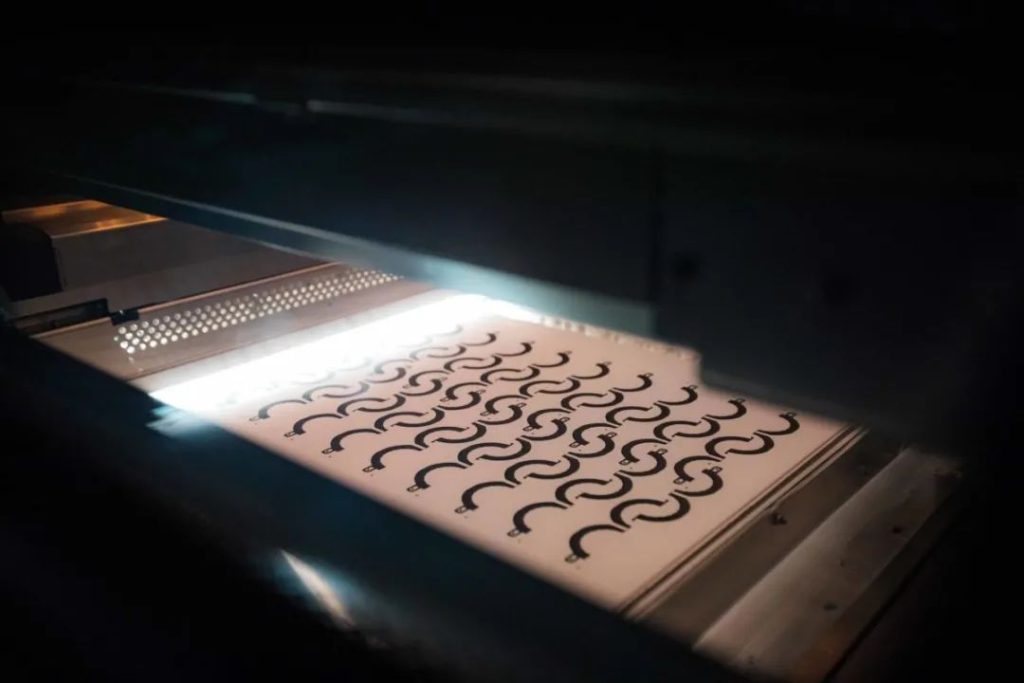

Metal 3D printers create objects layer by layer, using the most common example of powder bed fusion, where a laser repeatedly melts and cures metal powder bit by bit to create objects. Forming restrictions are relatively small and complex structures like lattices can be created.
As a result, parts that cannot be demoulded and that cannot be accessed by tools for cutting can be manufactured by 3D printing.
In addition, metal 3D printed parts are already stronger than castings and are approaching forging strength as technology continues to advance.
- Lightweighting can be achieved

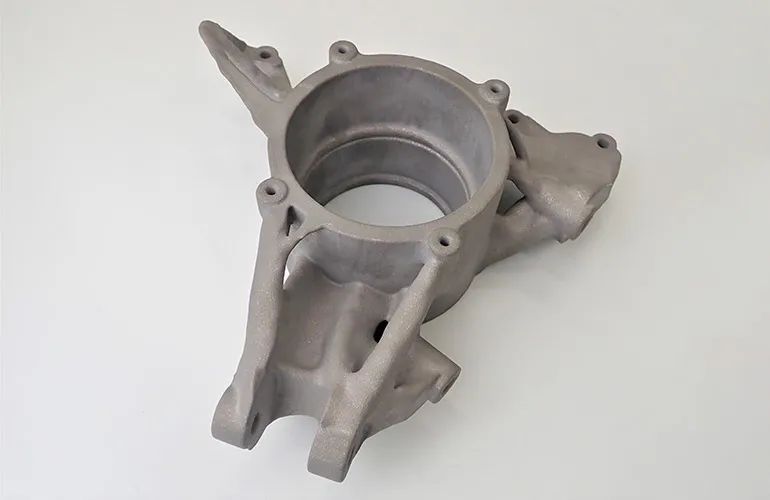

Due to the small moulding constraints, 3D printing can take full advantage of generative design and topology optimisation, where unnecessary parts are reduced by algorithms during the design phase and then manufactured by 3D printing.
- Low part count and high efficiency
The high degree of design freedom of the 3D printing process allows the design to be fully utilised, not only to reduce unnecessary parts but also to integrate multiple parts into a single unit, increasing efficiency and reducing energy consumption.
- Short lead times
When the number of parts is relatively small, or when only one piece is needed, 3D printing not only has a short production time, but also a cheap unit price. This makes metal 3D printing suitable for the production of prototypes or small batches.
II. Disadvantages
- High precision requires post-processing
Metal 3D printing is limited in the precision it can achieve. If the precision is very high, it needs to be achieved later through other processes such as finishing.
- General surface finish
The surface finish of metal 3D printed parts is relatively rough compared to traditional processes and requires post-processing to achieve a more desirable surface finish.
- Not suitable for mass production
When the production scale reaches a certain number, the economic efficiency of metal 3D printing decreases and it is currently not capable of handling the task of mass production, which can be done in small batches.
- Not suitable for printing large sized objects
Because of the thermal stress, metal 3D printing is currently not suitable for printing large objects, which are prone to warping and other phenomena.
However, the new metal 3D printing technology represented by jetting technology has overcome this difficulty, but it is not yet widespread enough. In the future, metal 3D printing will also be able to manufacture large parts.
- Difficult to replace traditional processes
At present, when an object can be manufactured both by traditional processes and by 3D printing, often the traditional processes have more of a cost advantage.
Overall, metal 3D printing is a good complement to current metal processes and will be used more widely in the future as its technology continues to advance and improve.
