Metal 3D printing, also known as additive manufacturing, has revolutionized the way we produce metal parts. One of the key techniques used in metal 3D printing is the powder bed fusion process, where layers of metal powder are selectively melted to build up the desired object. In this blog post, we will delve into the intricate melting process of metal 3D printing in a powder bed system, exploring the technologies, materials, and applications that make this innovative manufacturing method so powerful.
1. The Powder Bed Fusion Technology
The powder bed fusion (PBF) technology is a subset of metal 3D printing that utilizes a high-energy heat source, such as a laser or an electron beam, to selectively melt and fuse metal powder particles together. The process is done layer by layer, with each layer being melted to adhere to the previous one, gradually building up the final object. PBF is renowned for its ability to produce intricate geometries and complex internal structures, making it ideal for aerospace, medical, and other industries where precision and design flexibility are crucial.
2. Materials Used in Powder Bed Fusion
A wide range of metal powders can be used in the powder bed fusion process. Common materials include stainless steel, aluminum, titanium, cobalt-chrome, and nickel alloys. Each material comes with its unique properties, such as strength, thermal conductivity, and corrosion resistance, making it suitable for specific applications. The choice of material depends on the end-use requirements and the performance characteristics desired for the final part.
3. Preparation of the Powder Bed

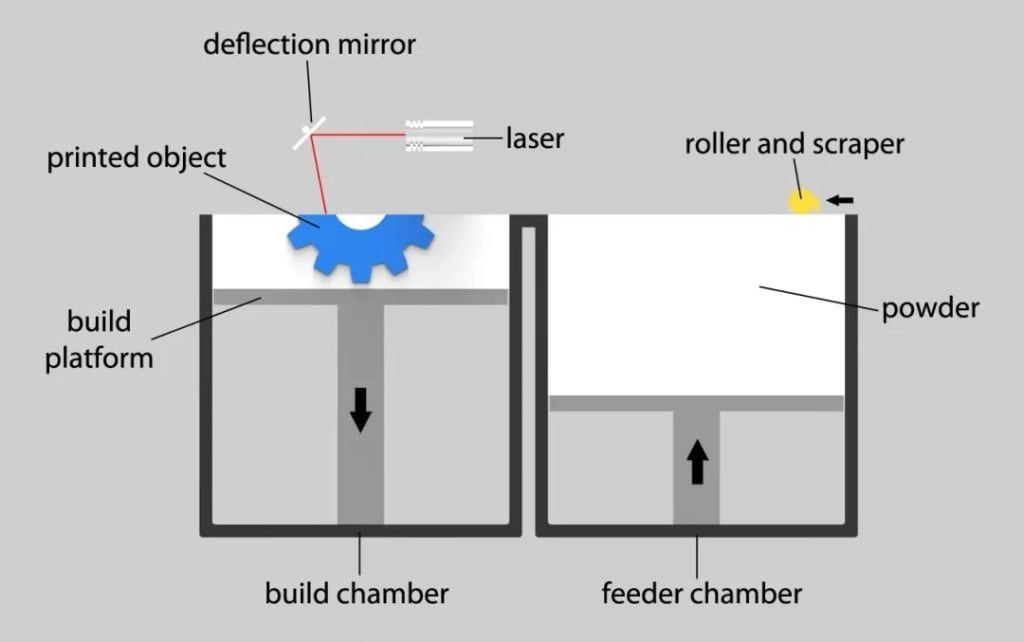

Before the metal 3D printing process begins, the powder bed must be carefully prepared. The metal powder is spread evenly across the build platform, forming a thin layer. A recoater or roller mechanism is then used to spread a new layer of powder over the previous one for the next melting cycle. The thickness of each layer is determined by the specific 3D printer and the desired resolution of the final object.
4. The Melting Process
Once the powder bed is prepared, the metal 3D printer starts the melting process. The high-energy heat source, such as a laser or electron beam, is precisely directed onto the surface of the powder bed. The energy from the heat source causes the metal powder particles to rapidly heat up and fuse together. The temperature is carefully controlled to ensure that only the desired areas are melted, while the rest of the powder bed remains unchanged.
5. Solidification and Cooling
After the melting process is complete, the newly fused layer of metal solidifies and cools down. As the process is done layer by layer, the previously solidified layers act as support for the newly melted ones. This controlled cooling and solidification prevent warping and distortion of the final part, ensuring dimensional accuracy and structural integrity.
6. Recoating and Layer Buildup
Once a layer is melted and solidified, the recoater or roller mechanism moves back into position to spread a new layer of metal powder over the previous one. The process then repeats, with the high-energy heat source selectively melting the new layer, and the cycle continues until the entire part is completed.
7. Post-Processing and Finishing
After the metal 3D printing process is complete, the part may require post-processing and finishing to achieve the desired surface finish and dimensional accuracy. Post-processing steps may include heat treatment, machining, polishing, and surface coating, depending on the specific requirements of the application.
Conclusion
The melting process of metal 3D printing in a powder bed system is a remarkable and complex technique that allows for the creation of intricate and precise metal parts. From aerospace to medical and beyond, the applications of metal 3D printing are continually expanding, with advancements in technology and materials driving the industry forward. As we continue to push the boundaries of additive manufacturing, the potential for innovation and customization in metal part production will only grow, shaping the future of manufacturing in various industries.
Common processes: DMLS (direct metal laser sintering), SLM (selective laser melting) and EBM (electron beam melting)
Description: metal parts produced by PBF melting technology can reduce residual stress and internal defects, making it an ideal choice for harsh applications in aerospace and automotive industries.
1.Direct metal laser sintering (DMLS): it can be used to build almost any metal alloy object. Direct metal laser sintering spreads a very thin layer of metal powder on the surface to be printed. The laser passes slowly and steadily through the surface to sinter the powder, and the inner particles of the metal fuse together, even if they are not heated to a fully molten state. An additional layer of powder is then applied and sintered to “print” one cross-section of the object at a time. After printing, the object will cool slowly, and the excess powder can be recycled from the construction room and recycled. The main advantage of DMLS is that it produces objects without residual stress and internal defects, which is very important for metal parts under high stress (such as aerospace or automotive parts), and the main disadvantage is very expensive.
2.Selective laser melting (SLM): use high-power laser to completely melt each layer of metal powder, not just sintering, so that the printed object is very dense and solid. At present, this process can only be used for certain metals, such as stainless steel, tool steel, titanium, cobalt chromium alloy and aluminum. The high temperature gradient during SLM manufacturing will also lead to stress and dislocation in the final product, which will damage the physical properties.
3.Electron beam melting (EBM): very similar to selective laser melting, it can produce dense metal structure. The difference between the two technologies is that EBM uses an electron beam instead of a laser to melt metal powder. At present, electron beam melting can only be used for a limited number of metals. Although cobalt chromium alloy can also be used, titanium alloy is still the main raw material of this process. This technology is mainly used to manufacture parts for the aerospace industry.
Technical advantages: it can manufacture almost any geometry with high precision. A wide range of metals are used, including the lightest titanium alloy and the strongest nickel superalloy, which are difficult to process by traditional manufacturing technology. Mechanical properties can be comparable to forged metal, and can be machined, coated and treated like traditional metal parts.
Technical disadvantages: high material, machinery and operation costs. The parts must be connected to the construction board through a support structure (to prevent warpage), which will generate waste and require manual post-treatment removal. The construction size is limited, and the metal powder treatment is dangerous, which requires strict process control.
